HEALTHLINE HL7104KD Bariatric Bedside Commode — 500 lb Capacity

Complete Assembly Video

Watch the full narrated HEALTHLINE HL7104KD assembly guide, including the parts check, letter-matched frame connections, gentle fastener tightening and seat attachment.

Wide support for everyday use

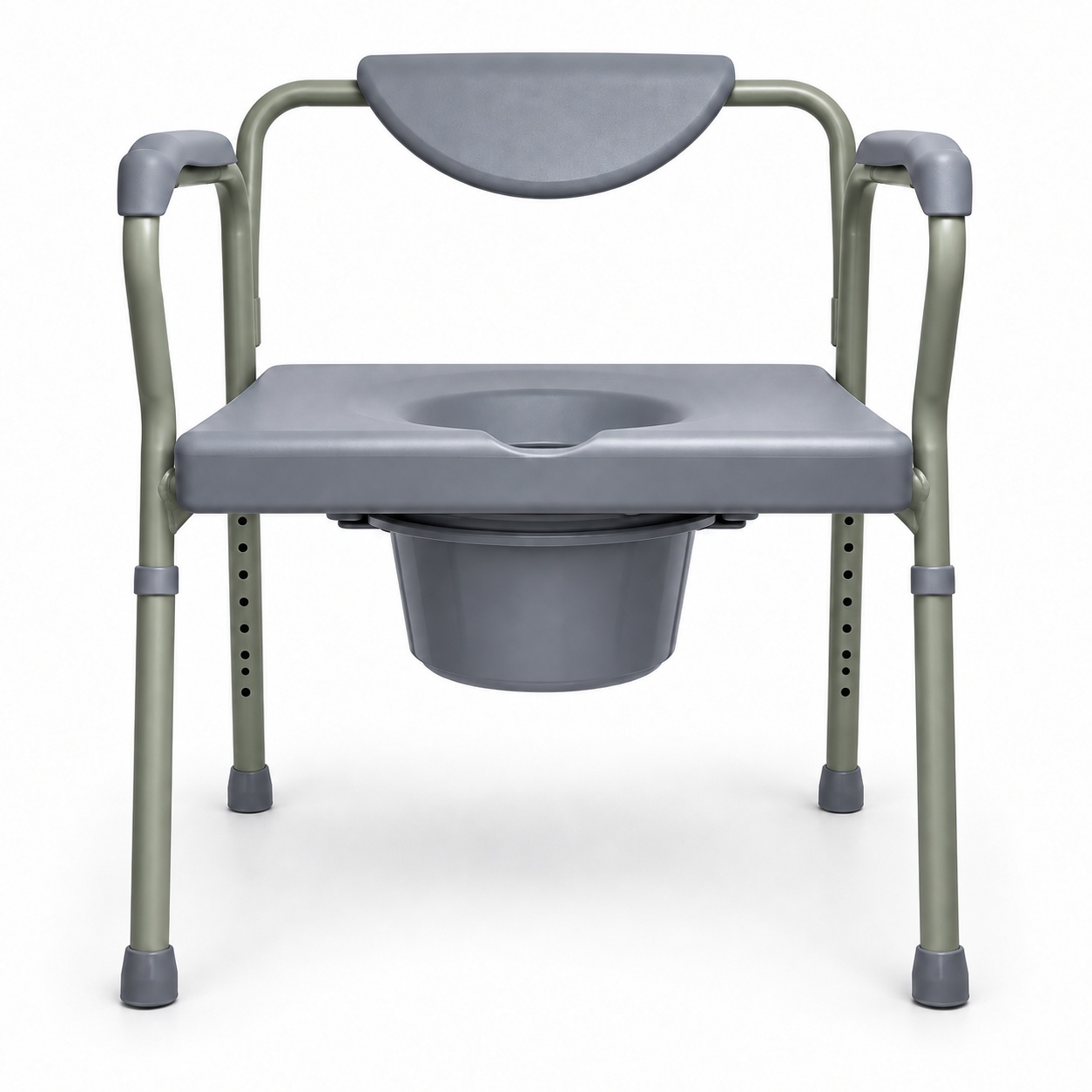

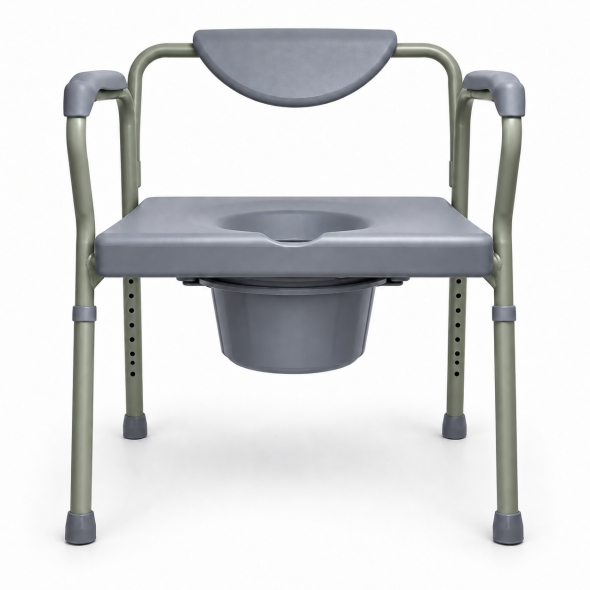

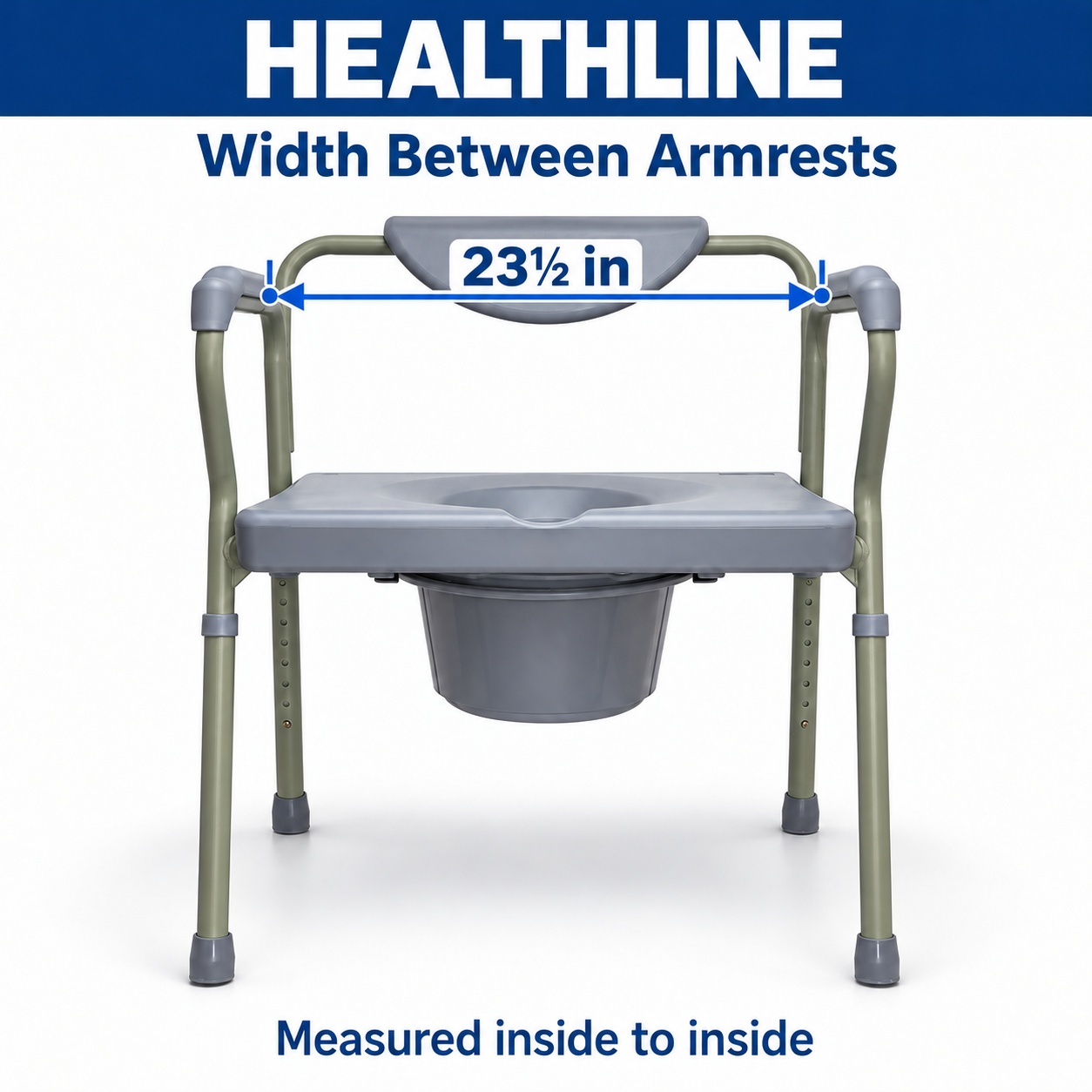

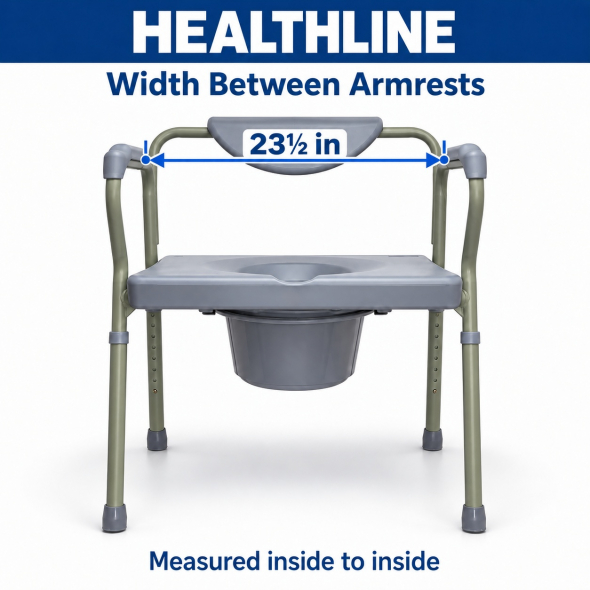

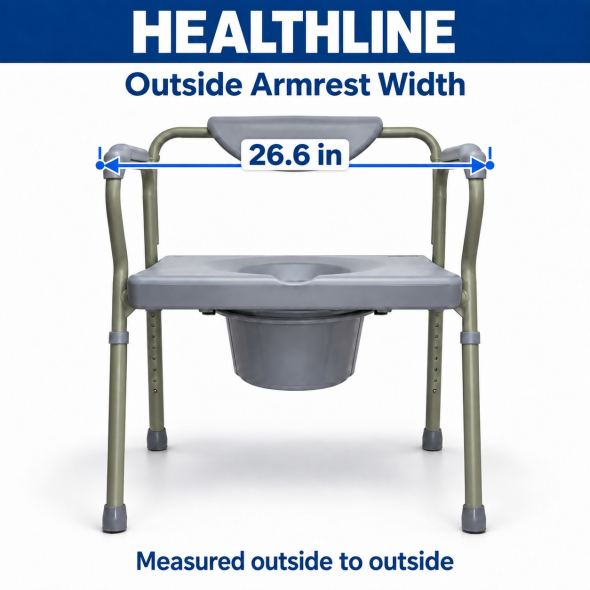

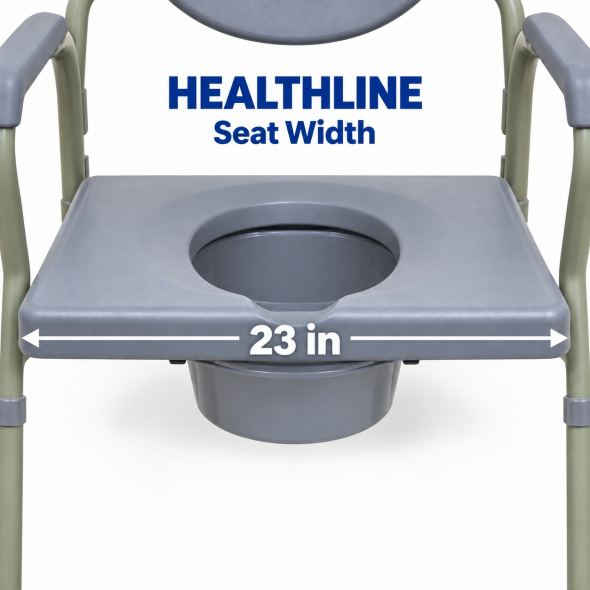

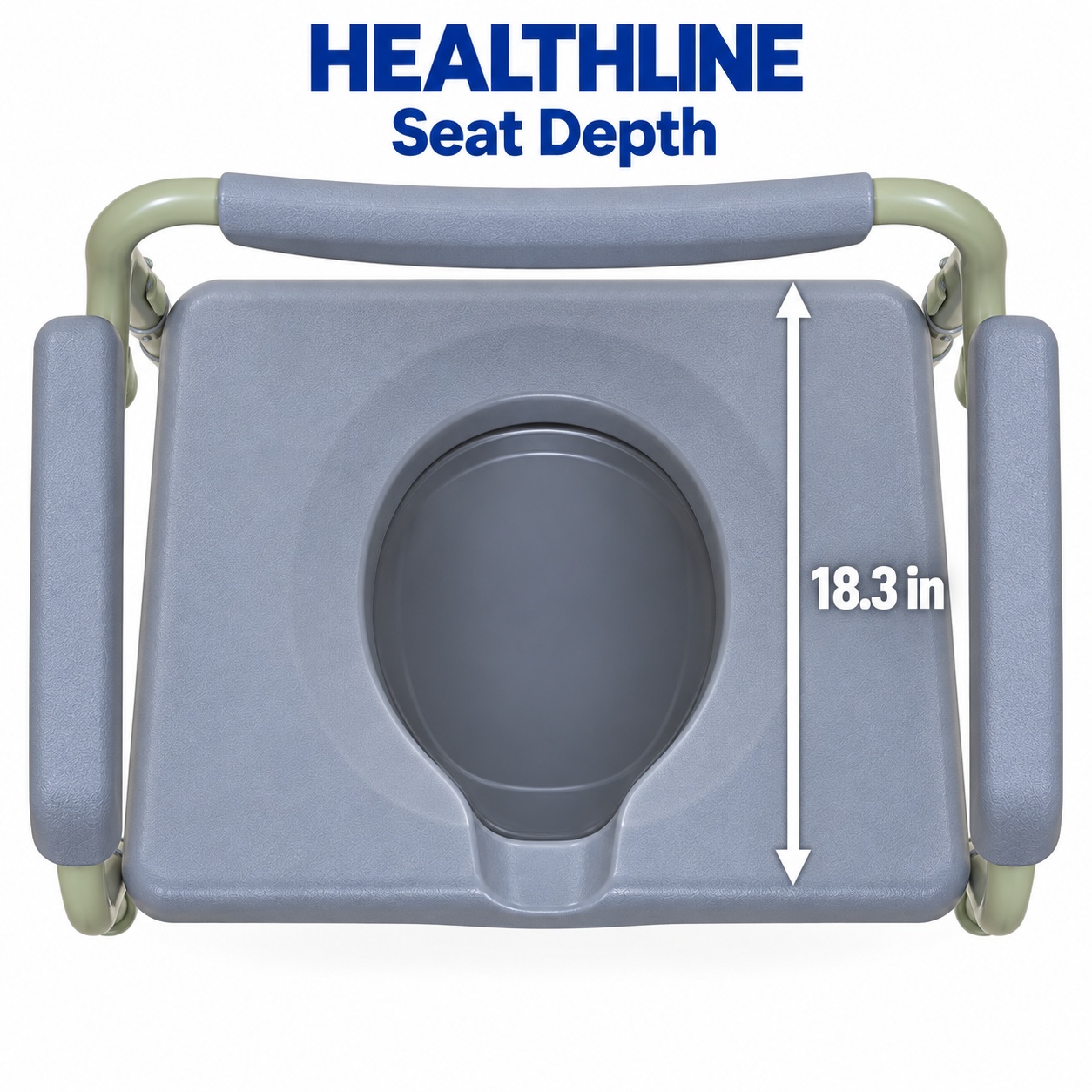

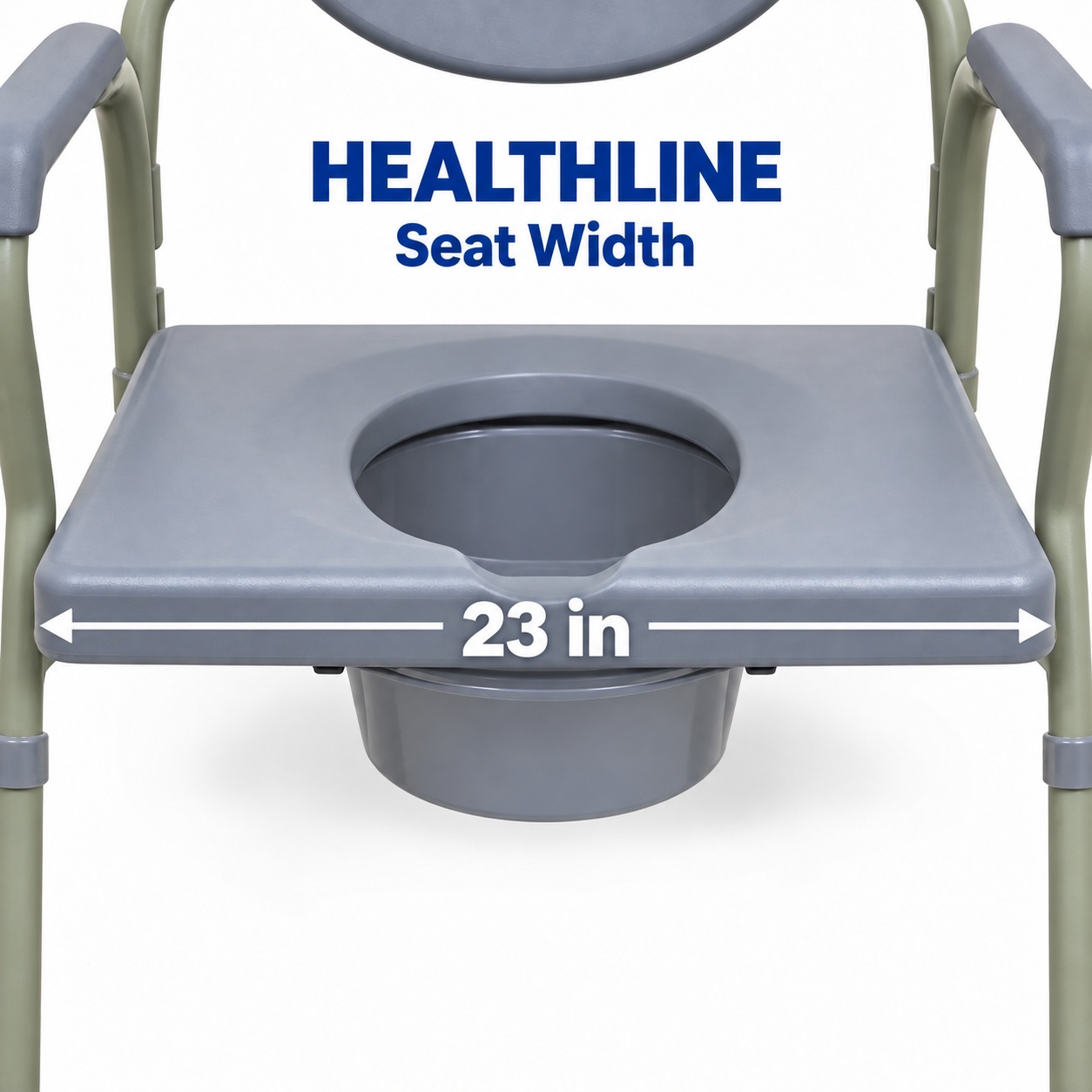

The HEALTHLINE HL7104KD bariatric bedside commode combines a steel frame rated for 500 lb with a wide, one-piece seat platform and central opening. The seat is 23 inches wide and 18.3 inches deep, with 23.5 inches of inside clearance between the armrests.

Eight height settings

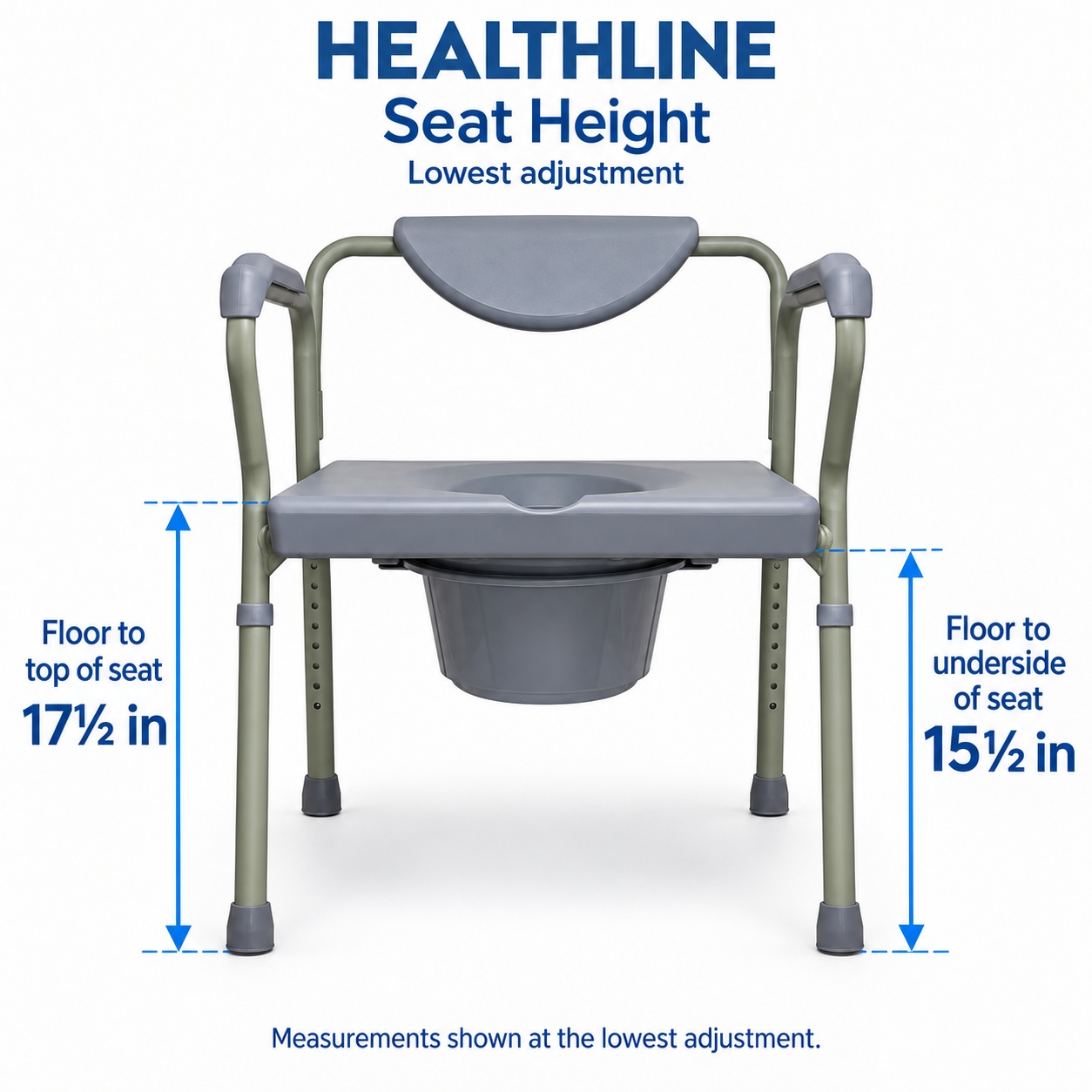

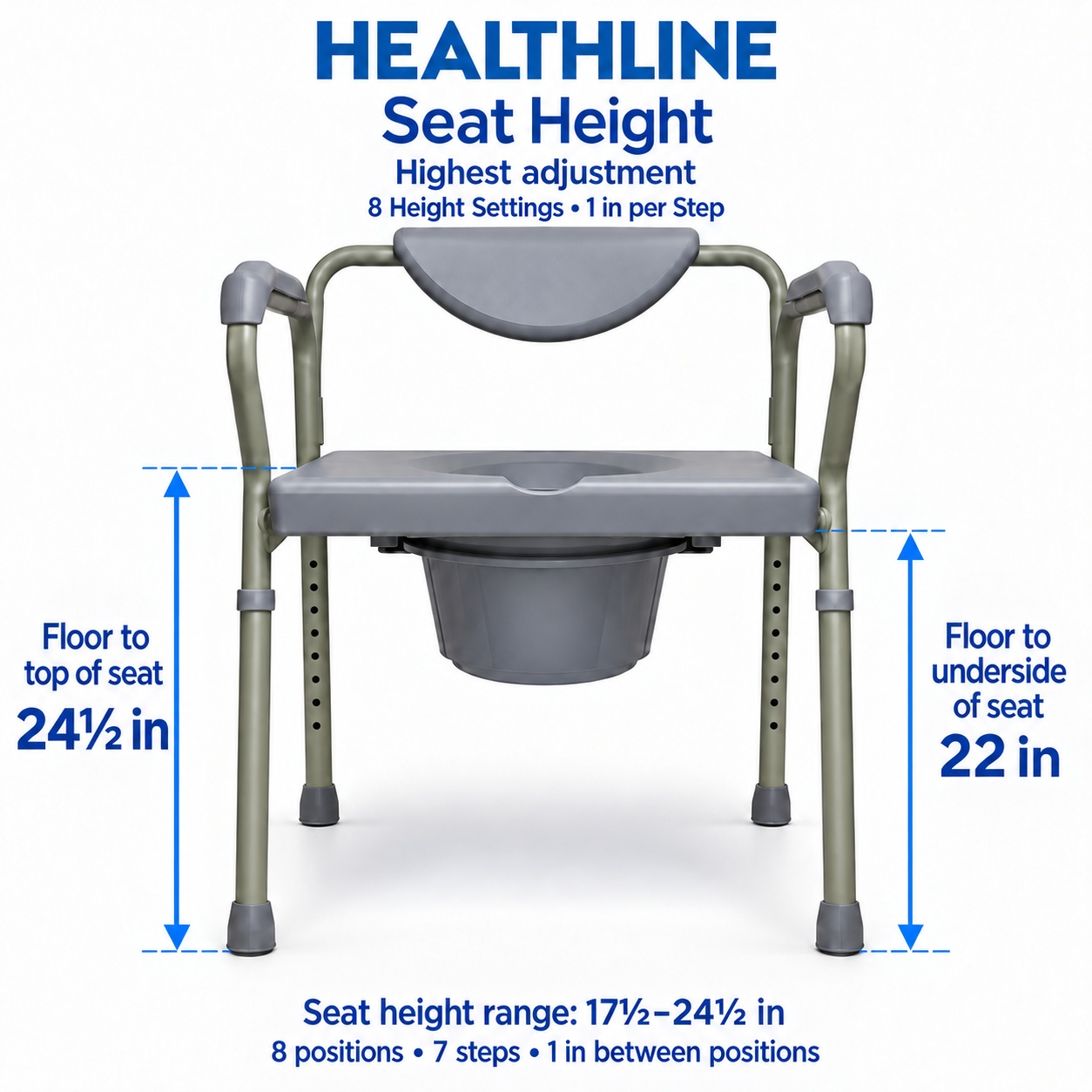

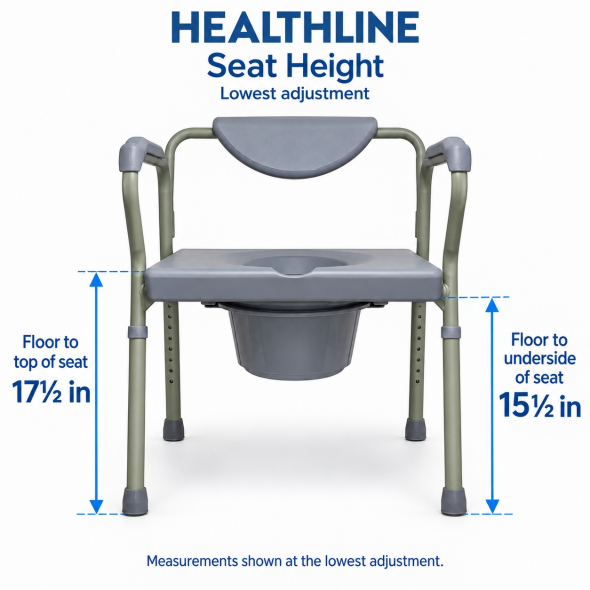

Adjust the seat from 17.5 to 24.5 inches above the floor in eight positions, with 1-inch steps. Set all four legs to the same position and make sure each adjustment button is fully engaged before use.

Bucket, lid and splash guard included

Use the included bucket for bedside use. The open-bottom splash guard directs waste into a compatible toilet when the commode is positioned over it. Check fit and clearance before use.

Assembly made clear

Check the parts before assembly. If anything is missing, contact us before starting. Match A to A, B to B, C to C and D to D. Insert the square fastener from underneath; its square section helps prevent it from turning. Install the round nut from above and tighten gently with an Allen key. Do not overtighten. Press the seat down until it clicks into place, then check that the seat and frame are secure.

Specifications

• Model / SKU: HL7104KD
• UPC: 819971015353
• Weight capacity: 500 lb
• Frame: steel; color: gray
• Product weight: 18.34 lb (8.32 kg)
• One commode per box; assembly required
• Box: 22 × 28 × 9 inches; shipping weight: 20.50 lb (9.30 kg)
• Made in China
